Pressure Relief Devices – Safety Valve vs Rupture Disc Explained

by NOWDAY 2025. 11. 3.

Pressure Relief Devices – Safety Valve vs Rupture Disc Explained

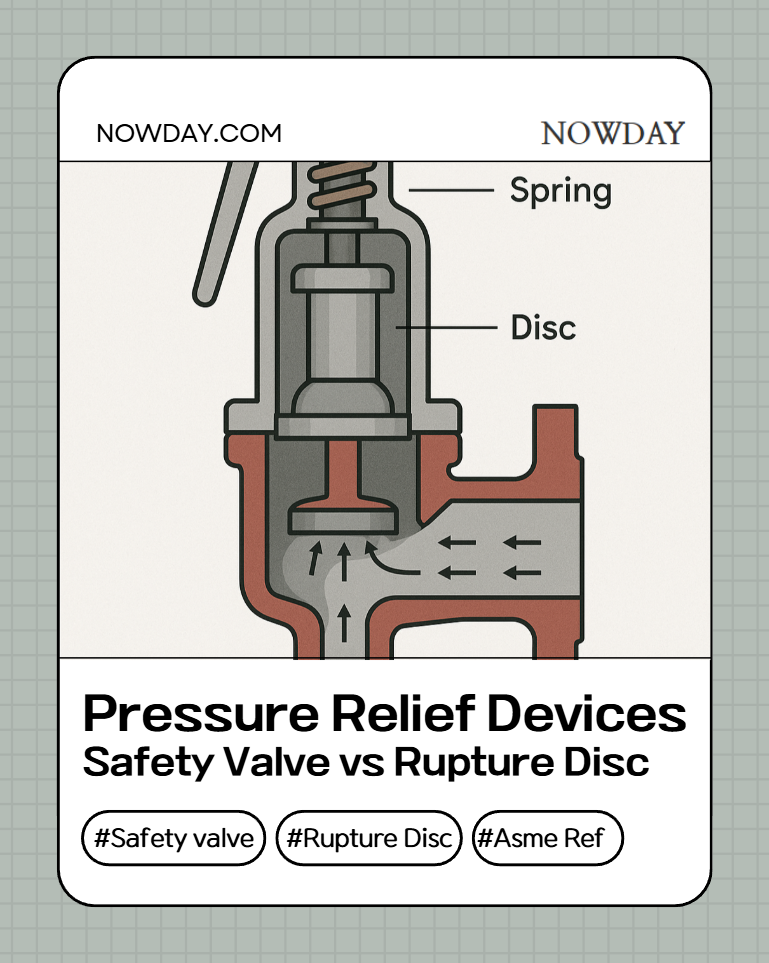

Pressure Relief Devices – Safety Valve vs Rupture Disc Explained

1. Introduction

Ask anyone who’s ever signed off a pressure vessel — you can design it perfect, weld it perfect, hydrotest it perfect.
But if you mess up the relief setup? That’s a bomb sitting quietly in the corner.
Pressure relief devices aren’t some paperwork requirement; they’re what keep plants from turning into accident reports.
Two main players here: safety valves and rupture discs. Same goal — release pressure — but totally different beasts in how they do it.


2. Safety Valves – The Workhorse

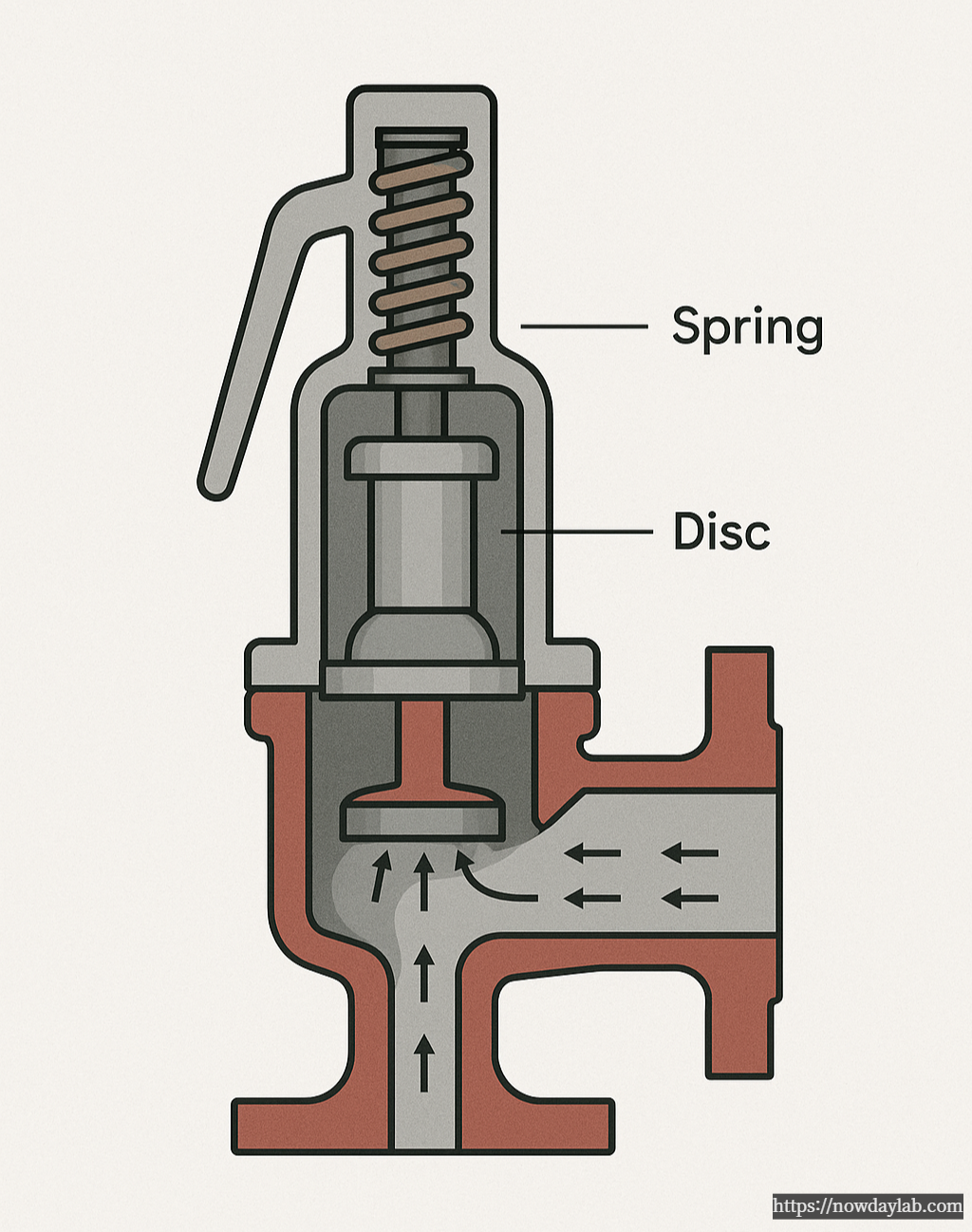

Cross-sectional technical diagram showing how a spring-loaded safety valve operates under pressure.
Working principle of a safety valve — spring tension lifts the disc when set pressure is exceeded, releasing excess pressure safely.

A safety valve is a mechanical spring-loaded device that opens when internal pressure reaches a preset limit.
Once the pressure drops back below the blowdown point, it snaps shut and the process goes on.
This “reclosing” behavior is why they’re so widely used in steam, gas, and compressed air systems.

ASME Section VIII, UG-125~137 covers all design and certification aspects.
Most shop guys will tell you: if it’s high-temperature or continuous duty, it’s a valve job.

Typical spec:

  • Set Pressure: Up to 300 bar (depending on class)
  • Body Material: Stainless 304/316 or Monel
  • Seat Material: PTFE or metal-to-metal
  • Applications: Boilers, gas tanks, reactors

File name: safety-valve-operation-diagram.jpg
ALT: Diagram showing the working principle of a spring-loaded safety valve.
Caption: Cross-section of a standard safety valve showing spring and disc action.


3. Rupture Discs – The One-Shot Solution

Diagram showing a rupture disc installed upstream of a safety valve in a pressure vessel system.
Combined protection setup — rupture disc shields the safety valve from process corrosion while ensuring rapid pressure relief.

A rupture disc (bursting disc) is the simplest, fastest-acting relief device you can use.
It’s just a thin membrane engineered to burst clean at a specific pressure.
No moving parts, no reseating — once it blows, it’s done.

Because it opens instantaneously, it’s perfect for toxic, polymerizing, or fast-reacting fluids where even a second’s delay is a risk.
Materials vary — stainless, Inconel, graphite, PTFE — depending on the medium and temperature.

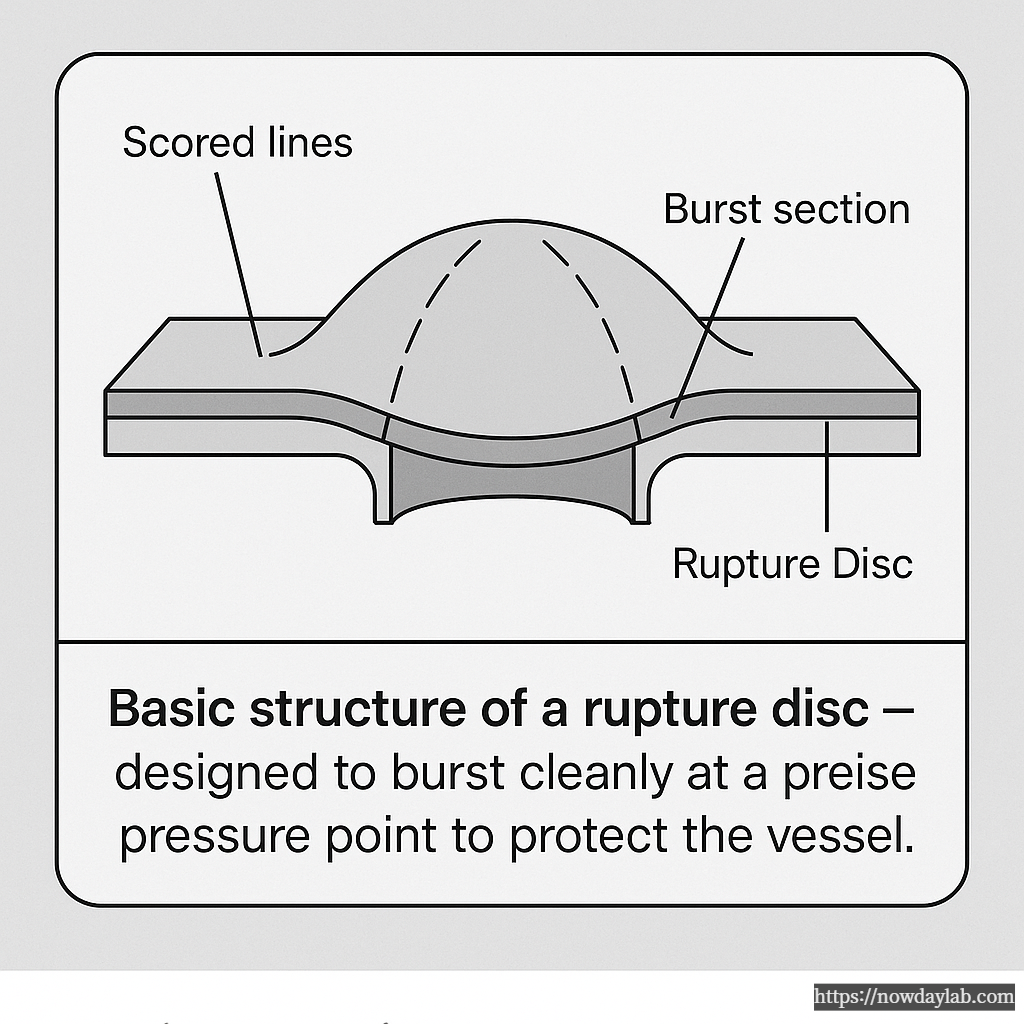

File name: rupture-disc-diagram.jpg
ALT: Illustration showing rupture disc structure and burst mechanism.
Caption: Structure of a rupture disc – simple, instant overpressure relief.


4. Safety Valve vs Rupture Disc – Head-to-Head

Category Safety Valve Rupture Disc
Operation Reclosing Non-reclosing
Accuracy ±3% ±5–10%
Reaction Speed Slower (mechanical) Instantaneous
Maintenance Calibration Replacement
Cost Higher Lower
Application Steam, air, gas Corrosive, toxic, high-speed reaction

If you’re running a process with frequent pressure swings, go with a valve.
If you’re dealing with something nasty or reactive, a disc saves your day — and maybe your plant.


5. Combined Use – The Smart Setup

Diagram showing a rupture disc installed upstream of a safety valve in a pressure vessel system.
Combined protection setup — rupture disc shields the safety valve from process corrosion while ensuring rapid pressure relief.

Most modern systems don’t pick one or the other; they use both.
You’ll see a rupture disc installed upstream of a safety valve.
The disc isolates the valve from process media, preventing corrosion and leakage — the valve just sees clean gas when it opens.
Once the disc bursts, the valve handles the pressure release.

File name: combined-relief-system-diagram.jpg
ALT: Diagram showing rupture disc installed before a safety valve.
Caption: Typical combined pressure relief system for critical process lines.


6. ASME & API Code Reference

Design and certification aren’t a guessing game.

  • ASME Section VIII – Mandatory rules for vessel overpressure protection
  • API 520/521 – Sizing, selection, and installation standards
  • API 526 – Flanged steel safety valves dimensions

When you select a device, consider:

  1. Set pressure – 10% above operating pressure
  2. Discharge area – based on relieving rate
  3. Temperature and corrosion resistance
  4. Certification mark – “UV” for safety valves, “UD” for rupture discs under ASME

7. Summary

A safety valve buys you time.
A rupture disc saves your equipment when things go south in a millisecond.
In most plants, the safest setup is using both, designed and sized correctly.

Bottom line: Relief devices aren’t optional — they’re your last line of defense.
Choose wrong, and you’re not running a process; you’re running a pressure bomb.
